Newswise — Microelectromechanical methods (MEMS) gyroscopes are valued for low value, compact dimension, gentle weight, and low energy consumption, which has made them vital in drones, good gadgets, autonomous autos, and navigation methods. Among their measurement schemes, force-to-rebalance (FTR) mode is broadly used due to its precision and stability. But part errors can emerge in excitation circuits, pickoff circuits, and digital processing, altering frequency locking, scale issue, and zero-rate output (ZRO). Earlier research usually corrected solely a part of the issue and didn’t absolutely distinguish between error areas or mechanisms. Based on these challenges, there’s a want to hold out in-depth analysis on how part errors have an effect on completely different management loops in MEMS gyroscopes and the way they are often precisely calibrated.
Researchers from Jiangsu University of Science and Technology, Southeast University, Beijing Institute of Aerospace Control Devices, Nanjing Institute of Technology, the Shanghai Institute of Microsystem and Information Technology of the Chinese Academy of Sciences, the University of Chinese Academy of Sciences, and Beijing Institute of Technology reported (DOI: 10.1038/s41378-025-01144-6) in 2026 in Microsystems & Nanoengineering that part errors in MEMS gyroscopes don’t contribute equally to efficiency loss. Their work on FTR fee measurement exhibits that some errors primarily disturb drive-frequency locking, whereas others immediately degrade scale issue and ZRO within the sense loop.

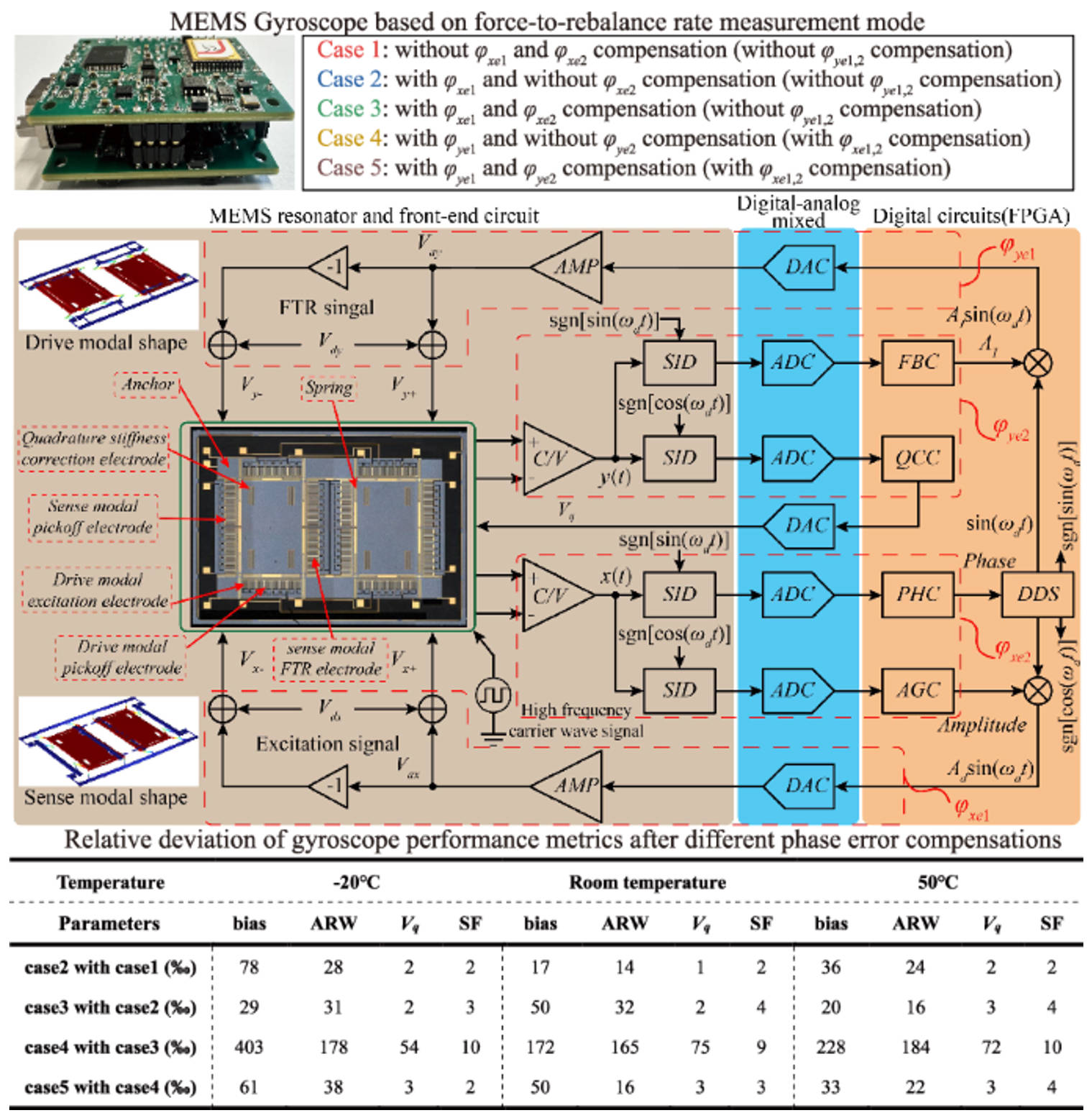

The group analyzed three key loops: the drive modal management loop, the FTR fee management loop, and the quadrature stiffness correction loop. In drive mode, they discovered that part errors within the suggestions and ahead paths shift the locking level away from the true resonant frequency and improve excitation amplitude. However, with feedthrough suppressed, these drive-mode errors had little discernible affect on FTR fee efficiency, no matter whether or not compensation was utilized. The extra consequential findings got here from sense mode. There, the feedback-path part error strongly affected scale issue and ZRO, whereas the forward-path part error had a a lot smaller impact. Bandwidth modified little in both case. The researchers additionally confirmed that these errors differ with temperature from -20 °C to 50 °C, which means calibration should be reconsidered throughout working situations relatively than fastened as soon as and assumed steady without end.
“This study makes one point especially clear: better gyroscopes will not come from correcting everything in the same way, but from identifying which phase errors actually damage the signal,” the findings counsel. “Once those dominant errors are isolated, engineers can focus compensation where it matters most—improving scale factor, protecting zero-rate stability, and avoiding unnecessary correction effort elsewhere.” Framed this fashion, the work gives not only a prognosis of error sources, however a extra sensible roadmap for designing gyroscopes that stay dependable when real-world situations start to shift.
The examine has clear sensible relevance for compact navigation, clever autos, and different precision electronics that depend on steady angular-rate sensing. By rating the affect of various part errors and pairing that evaluation with calibration procedures, the work supplies a helpful technique for enhancing MEMS gyroscope efficiency with out demanding main {hardware} redesign. It additionally highlights the significance of temperature-aware compensation in actual deployment. As MEMS gadgets transfer deeper into autonomous methods and high-performance sensing platforms, this type of focused error evaluation might assist push miniature gyroscopes towards better reliability within the subject.
###
Referneces
DOI
Original Source URL
https://doi.org/10.1038/s41378-025-01144-6
Funding info
This work was supported partly by Basic Science (Natural Science) Research Project of Higher Education Institutions in Jiangsu Province of China below Grant 23KJB590001, partly by Foundation of Key Laboratory of Micro-Inertial Instrument and Advanced Navigation Technology, Ministry of Education, China below Grant SEU-MIAN-202403, partly by National Key Research and Development Program of China below Grant No.2022YFB3205000, partly by National Natural Science Foundation of China below Grant No.52475586 and U2230206.
