Inside Australia’s bid to process rare earths at home

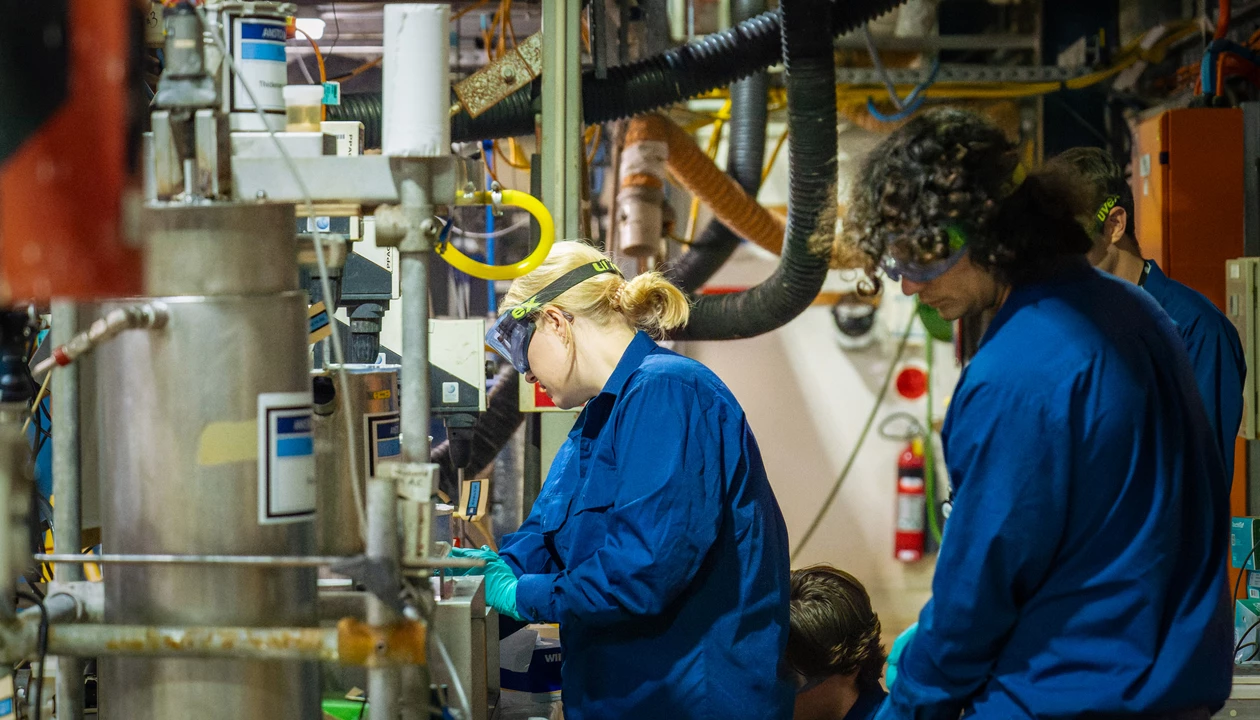

Lucas Heights, Australia—Inside the fortified campus of the Australian Nuclear Science and Technology Organisation (ANSTO) close to Sydney, staff in onerous hats transfer between newly put in 500 L tanks and metal piping inside one in every of dozens of buildings. The unassuming construction is the place scientists within the Nineteen Nineties examined how to process ore from one of many nation’s first main rare earth–mining discoveries.

Now a long time later, the constructing is being refitted to resume that work and assist Australia develop full-scale rare earth refineries. That renovation locations this pilot plant at the middle of the nation’s ambitions to problem China’s dominance in rare earth refining.

Rare earth parts—used to make the highly effective magnets present in electrical automobiles, wind generators, and different superior electronics—are considerably misnamed. These metals are comparatively considerable in Earth’s crust. But they’re not often present in concentrations excessive sufficient to be economically mined.

“Rare earths aren’t rare . . . it’s the processing that is,” says Chris Griffith, a senior process chemist and principal advisor in ANSTO’s mineral division.

But as demand for these important metals has grown several-fold over current a long time, spurred by the low-carbon power transition and new protection applied sciences, the bottleneck lies not to find rare earths however in turning them into merchandise.

These thinly dispersed metals are sometimes discovered sure up with different parts and with one another, that means massive volumes of ore should be processed to produce comparatively small quantities of usable materials.

The 17 metallic parts labeled as rare earths—the lanthanides, plus scandium and yttrium—share practically equivalent bodily and chemical properties, making them tough to separate. They embrace each the sunshine rare earths, comparable to neodymium and praseodymium, utilized in magnets, and the less-abundant heavy rare earths, like dysprosium and terbium, that are valued for sustaining magnetic efficiency at excessive temperatures. Isolating every aspect requires dozens and even a whole bunch of levels of solvent extraction, through which metals are repeatedly partitioned between aqueous and natural phases utilizing acids and natural solvents.

Because Australia, the world’s fourth-largest producer of rare earth ore, has traditionally had restricted home refining capability, a lot of the downstream chemical work happens abroad.

The push for home refining is pushed largely by the truth that China accounts for roughly 90% of worldwide processing capability—a strategic vulnerability. Backed by authorities assist and rising demand from allies such because the US, Australia is positioning itself in its place. “It’s largely [about] geopolitics,” says Chris Vernon, a chief analysis scientist at Australia’s nationwide science company, the Commonwealth Scientific and Industrial Research Organisation, or CSIRO.

The ANSTO pilot facility is about to open this month for work with business companions. That follows an April announcement that Australia and the US would mobilize greater than $3 billion in public financing and funding to diversify critical-mineral projects underneath a bilateral framework.

New plant will probably be a testing floor for rare earth refining

The pilot plant provides corporations a spot to check how their particular ore behaves earlier than committing to full-scale vegetation. Operating at an intermediate scale, the ability will enable stream sheets—step-by-step processing designs—to be refined and run as built-in programs relatively than as remoted lab experiments.

“There is no one-size-fits-all flow sheet that addresses all the challenges,” says Karin Soldenhoff, an ANSTO principal advisor in minerals who manages the process growth and analysis teams.

But shifting from pilot-scale success to industrial manufacturing introduces a second check: how to handle the environmental impacts.

Processing massive volumes of ore and separating the weather generates huge waste streams; refining a single ton of separated materials can generate tens to a whole bunch of tons of waste. These residues—usually acidic and steel wealthy, and generally together with naturally occurring radioactive parts, comparable to uranium—should be saved, handled, and monitored for many years, and in some circumstances longer, to forestall contamination of soil and water.

Australia has strict regulatory environmental frameworks associated to mining, however whether or not rare earth refining will be scaled up whereas sustaining these requirements stays an open query.

“Australia’s claim to be a cleaner alternative is not so much wrong as it is untested,” says Gwenaël Velge, a researcher at the Mineral Policy Institute, a nongovernmental group.

Why China dominates rare earth processing

China’s rise to refining dominance traces again a couple of a long time. In the Nineteen Eighties and Nineteen Nineties, when demand was restricted and environmental prices loomed massive, the US and different rare earth–mining international locations scaled again or exited processing. China, against this, accepted the environmental toll and invested closely in processing and separation, accepting decrease revenue margins and better environmental prices to construct capability. Over time, it developed a vertically built-in business linking mining, separation, and magnet manufacturing. When rare earth demand surged beginning within the early 2000s, significantly for high-performance magnets, ores mined from world wide have been more and more shipped to China for processing, cementing its place at the middle of the worldwide provide chain.

For Australia, one of many world’s largest mining nations, that dynamic has meant exporting uncooked supplies whereas a lot of the worth—and revenue—is generated elsewhere. Industry analysts observe that rare earth ore has comparatively little worth by itself; it’s the refined supplies and magnets that command larger costs.

Now as issues develop over a heavy reliance on China, Australia is pushing to convey at least some refining home. Projects underway embrace Iluka Resources’ Eneabba refinery in Western Australia—anticipated to be the nation’s first absolutely built-in rare earth processing facility and scheduled for commissioning in 2027. There’s additionally Arafura Rare Earths’ Nolans Project within the Northern Territory. It’s designed to produce rare earth oxides—an intermediate product that’s then additional refined into particular person metals—on-site.

How uranium processing will assist rare earth refiners

At ANSTO, the main target is on determining how to process particular ores—whose mineralogy and chemical composition can fluctuate wildly—earlier than corporations commit to constructing full refineries. The new facility will take materials from a deposit and run it by means of a whole processing route—from preliminary leaching to dissolving metals from the ore and thru to producing supplies comparable to rare earth oxides—so corporations can see whether or not their proposed refining strategy will work in apply.

That function builds on ANSTO’s experience in uranium processing, which, like rare earth refining, requires separation. In uranium ores, scientists should isolate hint quantities of uranium from different metals and impurities, usually coping with parts that behave very equally chemically and should be separated by means of fastidiously managed reactions. “We’re taking known chemistry and applying it to different materials,” Soldenhoff says.

Among the primary corporations set to use the ANSTO facility is Australian Rare Earths, or AR3, which is growing a rare earth deposit found in 2020 in southern Australia and generally known as the Koppamurra Project. This deposit stretches throughout farmland and low, sandy soils, the place rare earth parts happen in shallow clay relatively than onerous rock.

This kind of mineralization, generally known as ionic clay, has been a significant supply of China’s domestically mined rare earths, significantly for the heavier rare earth parts, which usually happen at decrease concentrations in most hard-rock deposits. In ionic clays, heavier rare earths are extra readily accessible, loosely sure to the fabric and thus simpler to extract. Outside China, such deposits have not often been developed. “There’s a limited amount of knowledge and expertise within this style of mineralization,” says Travis Beinke, AR3’s managing director.

Unlike hard-rock deposits, the place ore should be crushed and processed at excessive temperatures, clay-hosted rare earths can usually be extracted utilizing comparatively delicate chemical options that wash the metals out of the soil. At Koppamurra, the intention is to produce a combined rare earth oxide on-site. That materials would require additional processing—usually a number of levels of separation and conversion into metals—earlier than it may very well be utilized in functions comparable to magnets.

“Before you go and invest hundreds of millions of dollars . . . you want to be sure that you can do it at scale,” Beinke says. The firm has signed a nonbinding settlement to provide a few of its rare earth oxide to Canada-based NEO Performance Materials.

Can rare earth refining ever actually be inexperienced?

Australia’s push into rare earth refining rests partly on the premise that it may be carried out underneath strict environmental oversight. Mining and refining initiatives are topic to federal legal guidelines such because the Environment Protection and Biodiversity Conservation Act, together with detailed state approvals governing water use, waste administration, and web site rehabilitation. Companies should present they will safely comprise tailings and wastewater and return websites to a steady situation after operations finish.

But some skeptics argue that regulation alone could not resolve the underlying challenges related to rare earth refining. Even with strict oversight, the size and persistence of the waste streams generated by the process could make them tough to handle over time, particularly in stopping leaks into surrounding soil and freshwater. “Newer processing technologies may improve containment, but the underlying chemistry is what it is,” Velge says.

“It’s not hard to be cleaner than China,” provides Charles Roche, a sustainability lecturer at Murdoch University and the manager director of the Mineral Policy Institute, “but we haven’t managed to process rare earths at any scale.”

The reluctance of Western international locations to put money into refining in earlier a long time mirrored those self same constraints. “We didn’t offshore rare earth processing because we couldn’t do it,” Velge says. “It was cheaper and politically easier to let someone else bear the environmental burden.”

Potential contamination of groundwater, rivers, and surrounding watersheds is a specific concern within the Koppamurra area, the place the deposit sits beneath agricultural land. But Beinke, the AR3 director, says the venture won’t proceed except it meets regulatory necessities. “If we can’t demonstrate that, we simply won’t get approval to develop the project,” he says.

Tried-and-true solvent extraction, whereas chemically intensive, is tough to exchange. Most efforts to enhance refining, together with the work that will probably be carried out at ANSTO, concentrate on bettering present strategies relatively than changing them solely. That enchancment could imply lowering chemical use, bettering effectivity, or higher controlling waste.

Some researchers, nonetheless, are exploring methods to rethink separation at a extra elementary degree. New strategies embrace, for instance, utilizing biomolecule-based approaches that use brief chains of amino acids, generally known as peptides, to selectively bind specific rare earth elements. Such selectivity, in principle, would require fewer separation steps and chemical inputs, which could scale back waste.

But such analysis continues to be within the early levels, and firms are cautious of the dangers concerned in scaling new approaches. “[They] would much rather look at something which has been built and demonstrated that it works,” says George Franks, a chemical engineer at the University of Melbourne. “The mineral-processing industry is extremely risk averse.”

So for now, it’s not a lot the chemistry of refining that’s probably to change as it’s the place the refining is carried out. If Australia can construct refining capability whereas assembly environmental expectations, that success will probably form how, and the place, rare earths are produced within the years forward.
