The new heavyweight champions of robotics will probably be lighter, smaller and disconnected from an influence supply.
Researchers at Arizona State University are creating bio-inspired robotic “muscles” that may allow robots to function in boiling water, survive abrasive surfaces, bypass impediments that preserve their motorized counterparts benched, and nonetheless elevate as much as 100 occasions their very own weight.
Eric Weissman, a doctoral pupil in ASU’s Robotic Actuators and Dynamics Lab, was the lead writer of a paper, “Versatile Artificial Muscles by Decoupling Anisotropy,” printed on March 27. Lab Director Jiefeng Sun, an assistant professor at the School for Engineering of Matter, Transport and Energy within the Ira A. Fulton Schools of Engineering at ASU, was a co-author.
“Essentially, we developed a novel artificial muscle that mimics real muscles,” Weissman stated. “While bio-inspired muscles previously existed, we have made them more versatile, more lightweight and more powerful.”
Today’s quadruped robots, for instance, are considerably restricted in mobility as a result of they’re normally motor-based and are typically very heavy and fewer versatile.
Weissman’s helical anisotropically bolstered polymer (HARP) actuators, then again, mimic pure muscle contraction and enlargement. These actuators are versatile, very light-weight and quiet to be used in gentle robotics — offering muscle that can elevate far more proportionally than electrical-driven counterparts of the identical weight.
“These muscles look like little tubes that are coiled like cavatappi, which is a hollow, ridged, corkscrew-shaped pasta,” Weissman stated. “When we inflate them by applying a little bit of air, they expand and contract.

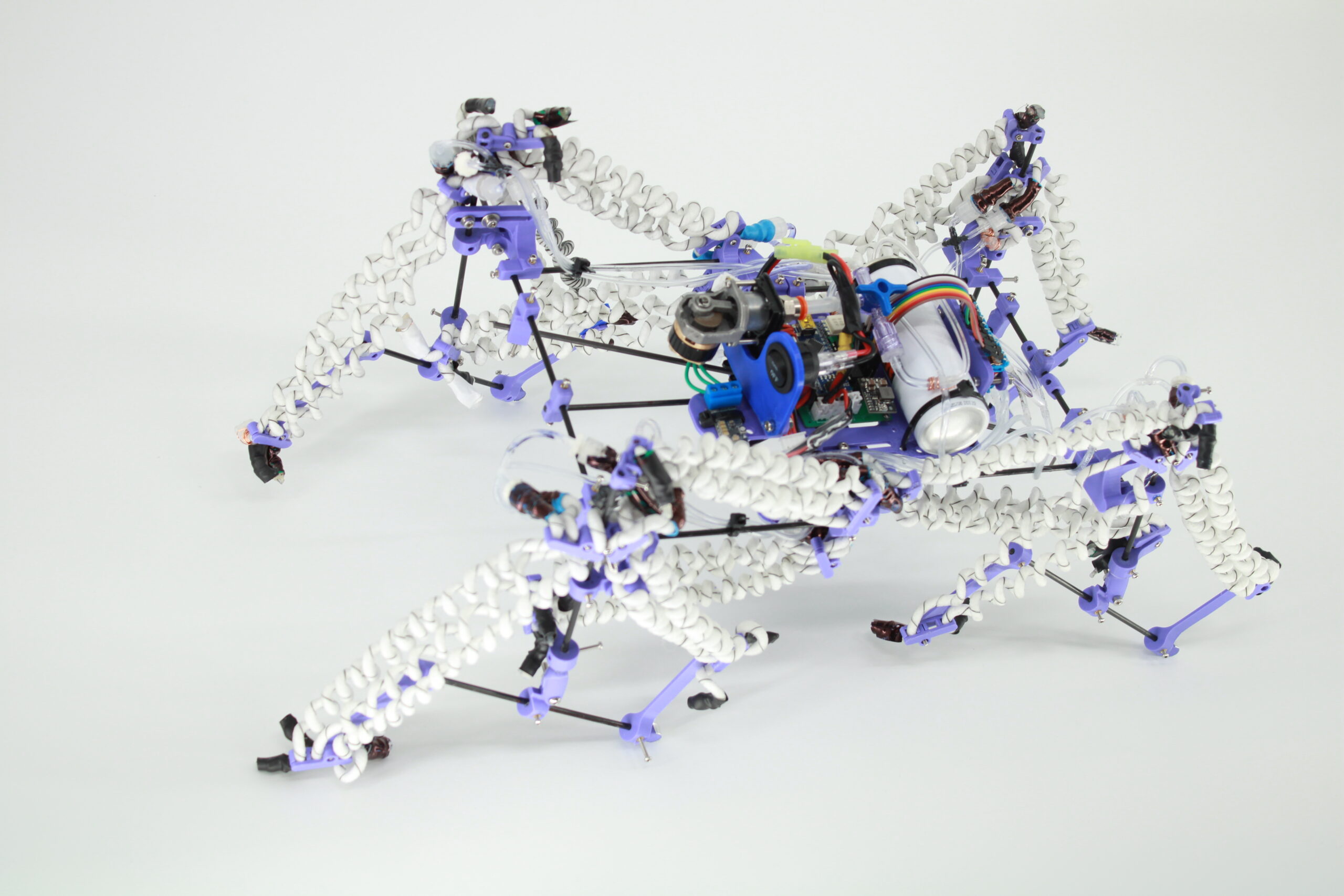

“Because of their versatility and adaptability, we were able to reduce that pressure requirement significantly, which enabled us to make a robot that could walk independently without any external power supply, carrying everything it needs on itself.”
The workforce’s analysis goes past designing bioinspired muscle tissue for particular person, particular duties. Instead, they’ve developed a broad framework that permits tailoring the expertise for a variety of lower-cost functions.
“In disaster response, soft robots will move through debris or collapsed buildings to search for survivors. Their flexible bodies allow them to squeeze into tight places without causing further damage,” Weissman stated. “At home, they could safely help older adults with daily activities, like reaching for items on shelves and assisting with simple chores.”
Because HARP actuators can endure excessive ranges of warmth, they additionally can be used for duties like industrial rinsing processes or marine exploration and pattern retrieval close to thermal vents the place magma-heated water is launched into the ocean. Its flexibility and talent to rotate and grasp makes it splendid for agriculture and industrial makes use of.
The workforce has a provisional patent by ASU’s Skysong Innovations and just lately was awarded an NVIDIA Academic Grant, which will present {hardware} in continued help of the analysis.
Bionic elephant arm reaches over, round and beneath
Another undertaking in Sun’s lab is doctoral pupil Jiahe Wang’s “bionic elephant arm,” a gentle robotic arm impressed by the flexibleness and dexterity of an elephant trunk.
This bio-inspired system permits the arm to achieve over, beneath and round obstacles with ease, making it notably effectively suited to inspection and manipulation duties in industrial settings. Its light-weight construction and inherent compliance scale back the chance of injury to tools and enhance security for close by staff, particularly in situations that require shut human-robot interplay.
“In places like chemical plants or crowded production lines, equipment is often difficult to reach and sensitive to accidental bumps. As a result, even simple inspections may require stopping operations, leading to costly and time-consuming downtime,” Wang stated.
In agriculture, a thinner model might transfer by vegetation and help with pollination — a job that usually requires lengthy hours of handbook work. Unlike drones, which create robust air motion that can disturb crops, a gentle robotic can work more gently. Thicker variations may very well be utilized in area, serving to astronauts with upkeep or handing them instruments. Because the robotic is gentle and versatile, it’s safer to make use of round each folks and delicate tools, the place even small collisions can trigger issues.
“Crops like strawberries and tomatoes have dense leaf canopies, which are challenging for pollinators to navigate through,” Sun stated. “A soft robotic arm can get in there and perform the pollination functions, navigating around any obstacles it encounters.”
A brand new form of backup
Doctoral pupil Rohan Khatavkar, co-supervised by Sun and Associate Professor Hyunglae Lee, has developed a again help system (BSD) designed to mitigate overexertion whereas performing industrial duties, like lifting heavy tools or cargo. It additionally can present help to people with weak again muscle tissue and stop falls.
“Typical active BSDs are motor-driven and can be tuned to specific task usage demands,” Khatavkar stated. “However, they are bulky and heavy, making them uncomfortable, especially for those with physical limitations. Passive devices are lightweight and compact but cannot be tuned to task demands.”
In the newest model of its BSD, Khatavkar’s workforce strikes a stability by including energetic and passive parts in parallel. This is achieved with an elastic actuator and a pneumatic synthetic muscle to present a tunable mechanism.
“The new device is compact and lightweight yet has the capacity for tuning the assistive force,” Khatavkar stated. “They can be tuned to specific task demands. … Not only does the revised BSD that uses soft materials and offer a lighter-weight operating system, but it also has built-in, adjustable stiffness modes/force levels that can be turned off, instead of removing the BSD, when periods of assistance are not required.”
Bringing all of it collectively for the long run
Sun sees infinite robotic functions for the bio-inspired muscle tissue, together with agriculture, business, well being care and surgical procedure, family and landscaping chores and, sometime within the not-too-distant future, area exploration.
“Ultimately, we can use these softer, flexible and compliant muscle devices in a wide range of robots because they are smaller, more lightweight and don’t present the inherent pinching hazards of today’s rigid robots,” Sun said.
“By using space-grade materials, we can provide mobility, agility and ease of motion in devices designed both for astronauts and the robots they bring with them to space.”
